Kelly Gray Uterine Curettes

Kelly Gray Uterine Curettes (5mm to 8mm) – Serrated Loop Endocervical & Endometrial Biopsy Instruments

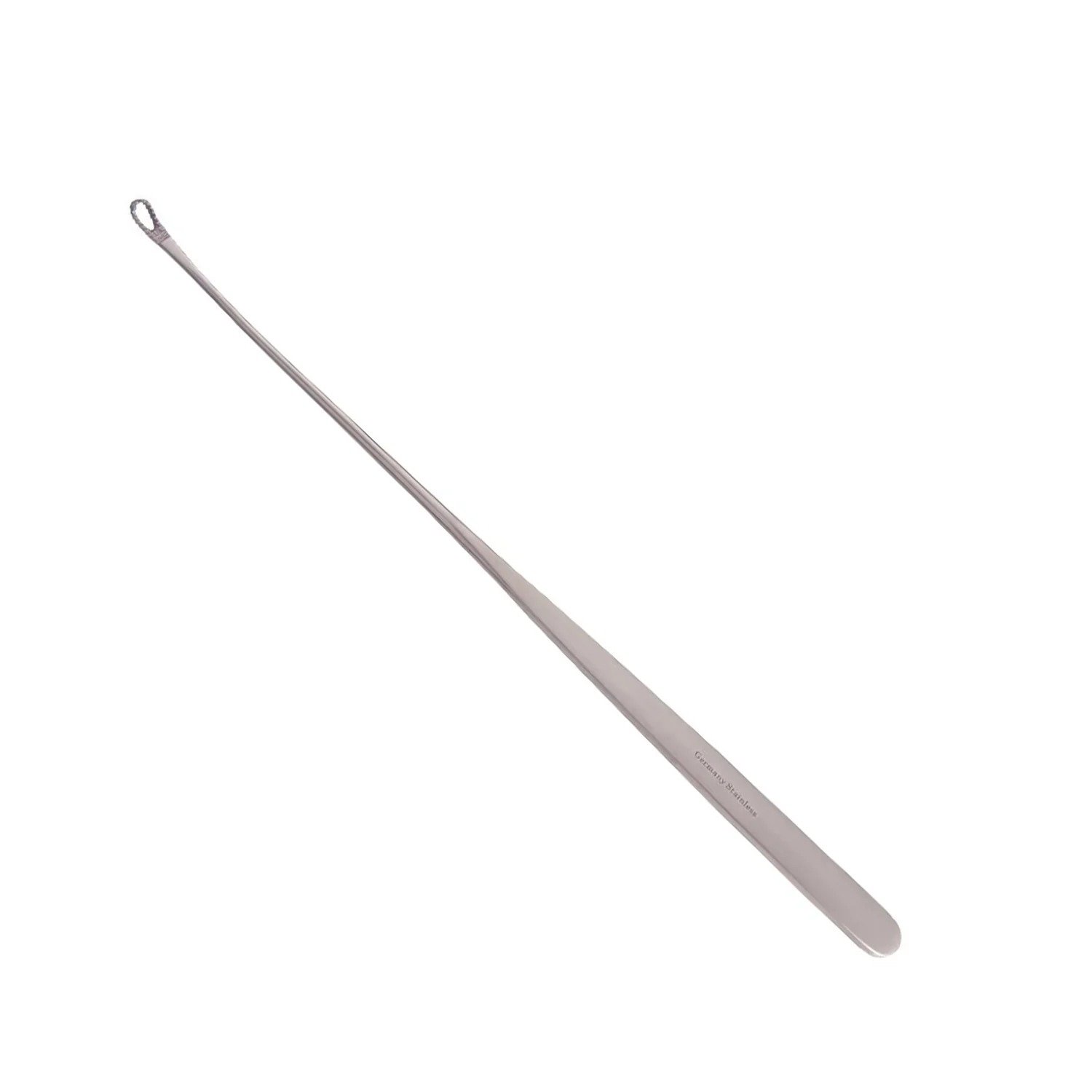

Pak Line Industries presents the Kelly Gray Uterine Curettes (5mm to 8mm), a precision gynecological and obstetrical instrument engineered for diagnostic endometrial sampling, endocervical scraping, and controlled cavity curettage. Designed with an elongated, slender shaft (available in rigid or malleable configurations), a flat ergonomic handle, and an oval fenestrated loop tip with dual-sided cutting serrations, this instrument enables clinicians to excise representative mucosal ribbons smoothly while minimizing patient trauma and preventing deep myometrial laceration.

Manufactured in our ISO 13485:2016 certified production facility in Sialkot, every Kelly Gray curette is hot-drop forged from premium medical-grade AISI 420 Surgical Stainless Steel and vacuum heat-treated to HRC 50–54 to guarantee lasting blade hardness, prevent shaft distortion under axial pressure, and eliminate corrosion during high-turnover reprocessing cycles. Offered in four standard tip calibers—5.0 mm, 6.0 mm, 7.0 mm, and 8.0 mm loop widths—with an overall working length of 9 1/2″ (24.0 cm), the micro-serrated cutting perimeter captures firm endometrial or endocervical specimens without slipping. Built with an anti-glare satin matte finish, this instrument is fully reusable, rustproof, and 100% steam autoclavable, meeting the demanding procurement criteria of hospital surgical theaters, outpatient colposcopy units, and global medical supply distributors.

Key Features & Surgical Performance Advantages

• Dual-Sided Serrated Loop Tip: Micro-serrated cutting edges on both aspects of the fenestrated oval loop excise clean tissue strips without shredding mucosa or slipping off fibrous lesions.

• Progressive Sizing Range (5mm to 8mm): Available in 5.0 mm, 6.0 mm, 7.0 mm, and 8.0 mm tip widths to accommodate tight nulliparous endocervical canals as well as spacious multiparous uterine cavities.

• Open Fenestrated Collection Window: Open oval lumen retains harvested tissue strips within the loop perimeter, preventing sample displacement into the vaginal fornix during withdrawal.

• Extended 9 1/2″ (24.0 cm) Working Reach: Slender shaft easily traverses deep vaginal speculums, providing direct fundal access while keeping the surgeon’s hand clear of the operative line of sight.

• Integrated Flat Grip Handle: Smooth, solid flat handle provides non-slip thumb and index finger leverage, facilitating precise rotational passes across all uterine quadrants.

• Rigid or Malleable Shaft Options: Available with a rigid martensitic shaft for direct axial scraping or a semi-malleable shaft that contours to extreme anteverted or retroverted uterine anatomy.

• Forged AISI 420 Surgical Stainless Steel: Delivers high edge-retention hardness and torsional rigidity, preventing loop deformation or shaft buckling during vigorous curettage.

• Anti-Glare Satin Matte Finish: Reduces reflective glare from direct overhead surgical lamps and colposcope illuminators, minimizing clinician eye strain.

• 100% Steam Autoclavable & Reusable: Resists repeated hospital autoclaving cycles (134°C / 273°F) and ultrasonic cleaning without edge dulling, staining, or surface pitting.

• OEM & Custom Set Solutions: Offered as individual replacement sizes or as a complete 4-piece boxed set housed in stainless steel sterilization trays or custom export packaging.

Common Gynecological & Clinical Applications

• Endocervical and Endometrial Biopsy for Histological Staging of Atypical Hyperplasia

• Diagnostic Investigation of Abnormal Uterine Bleeding (AUB) and Postmenopausal Bleeding (PMB)

• Fractional Dilation & Curettage (D&C) Staging Protocols for Cervical and Endometrial Carcinoma

• Endometrial Cavity Scraping for Retained Products of Conception (RPOC)

• Evaluation and Debridement of Endocervical Canal Lesions Following Abnormal Pap Smears / Colposcopy

• Endometrial Dating and Histopathological Workup for Female Infertility

Available Sizing & Technical Specifications (B2B Quick-Specs)
