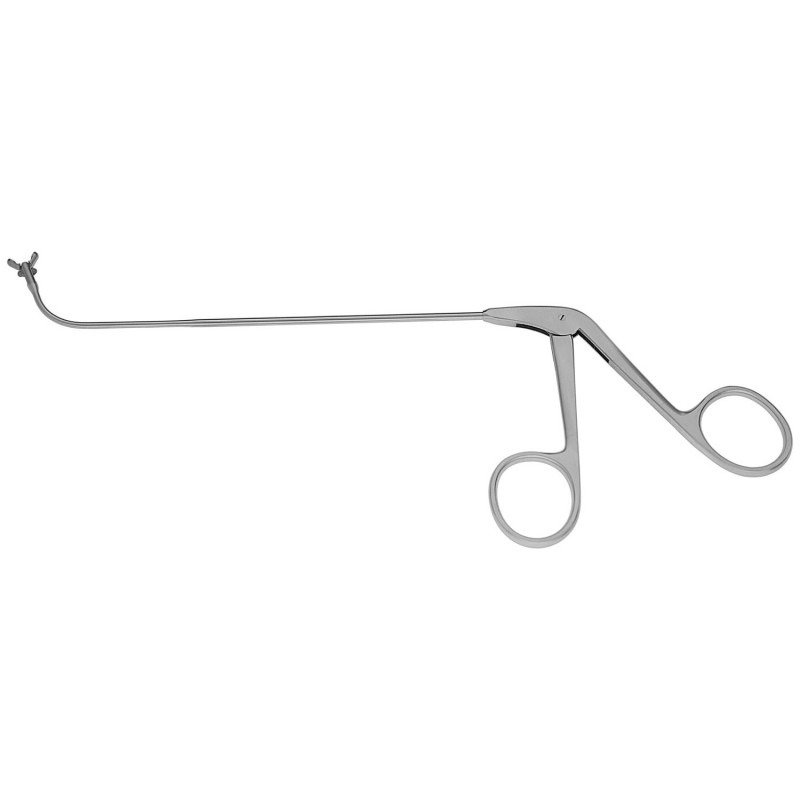

Frontal Sinus Giraffe Forceps

Frontal Sinus Giraffe Forceps – Precision Endoscopic Sinus Surgery Forceps

Pak Line Industries presents the Frontal Sinus Giraffe Forceps, a specialized micro-instrument engineered for tissue manipulation, polyp excision, and clearance of the frontal recess during Functional Endoscopic Sinus Surgery (FESS). Designed with a low-profile shaft and an upward-angled neck, this instrument provides access into the steep anatomical contours of the frontal sinus drainage pathway while maintaining an unobstructed visual axis alongside angled endoscopes ($45^\circ$ and $70^\circ$).

Manufactured in our ISO 13485:2016 certified production facility in Sialkot, this instrument is hot-drop forged from premium medical-grade AISI 420 Surgical Stainless Steel and vacuum heat-treated to HRC 50–54 for edge retention, structural stiffness, and corrosion resistance. The forceps feature a delicate cupped jaw mechanism that excises mucosal lesions cleanly without tearing adjacent respiratory mucosa. Built with an anti-glare satin finish, this instrument is fully reusable and 100% steam autoclavable, meeting the standards of hospital operating theaters and international surgical distributors.

Key Features & Surgical Performance Advantages

• Angled “Giraffe” Tip Architecture: Upward-curved distal neck allows access into the frontal recess, anterior ethmoid air cells, and suprabulbar recesses without line-of-sight obstruction.

• Precision Cupped Jaws: Miniature hollow-ground cup tips deliver clean tissue excision and capture resected specimens to prevent fragment loss within the nasal cavity.

• Low-Profile Slender Shaft: Slim shaft navigates alongside angled rigid endoscopes through narrow anatomical corridors without crowding the operative field.

• Offset Ergonomic Handle Chassis: Pistol-ring handle configuration lowers the clinician’s hand below the optical pathway, preventing camera interference.

• Responsive Articulation: Spring-action handle design delivers tactile feedback for controlled micro-mechanical tissue engagement.

• AISI 420 Surgical Stainless Steel: Martensitic alloy hardened to HRC 50–54 prevents shaft bending and tip deformation under mechanical stress.

• 100% Steam Autoclavable & Reusable: Withstands repeated high-temperature hospital sterilization cycles (134°C / 273°F) and ultrasonic cleaning protocols.

• OEM & Custom Specification Services: Available in multiple jaw orientations (vertical-opening and horizontal-opening; $45^\circ$, $70^\circ$, and $90^\circ$ angles) with custom laser marking and export packaging.

Common Surgical Applications

• Functional Endoscopic Sinus Surgery (FESS)

• Frontal Sinus Recess Clearance & Ostium Dissection

• Anterior Ethmoidectomy & Resection of Supradiaphragmatic Cells

• Sinonasal Polypectomy & Hyperplastic Mucosa Debridement

• Frontal Sinusotomy (Draf I, II, and III Procedures)

Technical Specifications (B2B Quick-Specs)
