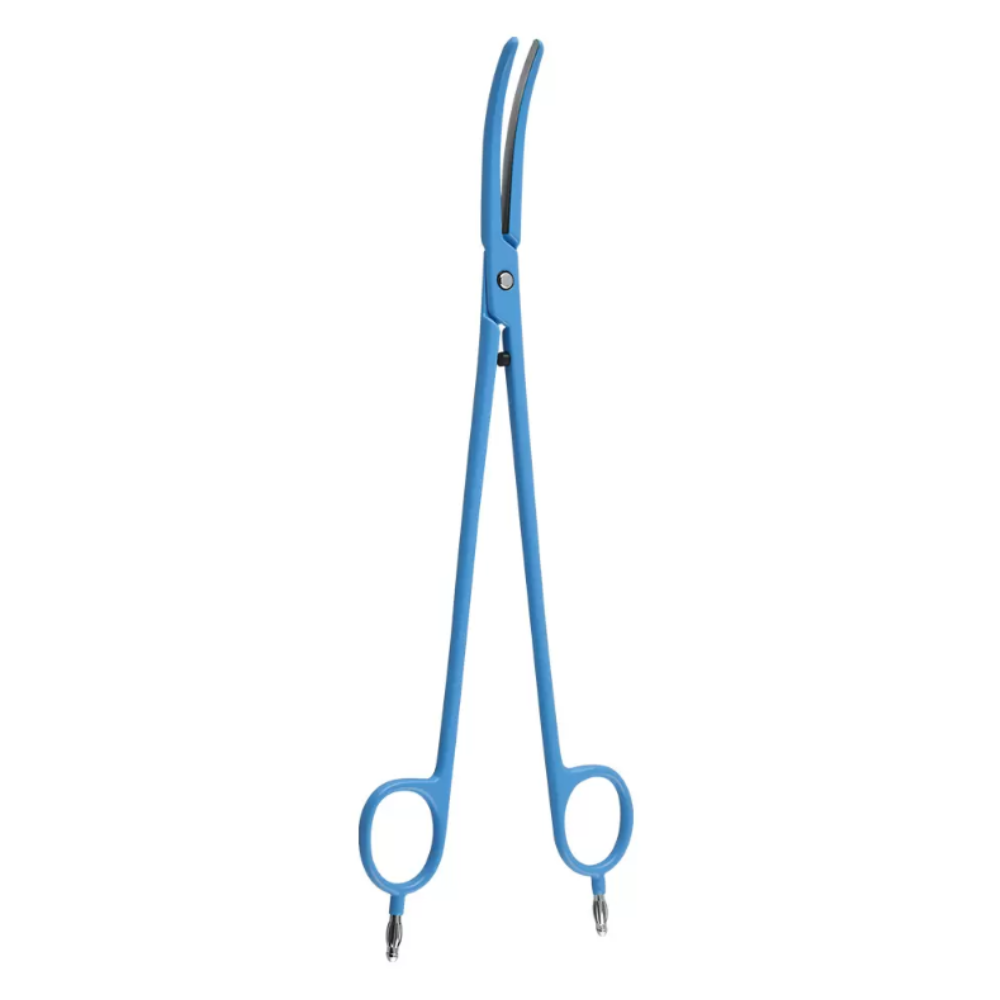

Bipolar Artery Sealer 26cm

Bipolar Artery Sealer 26cm – Bipolar Electrosurgical Vessel Sealing Forceps (Blue Insulated)

Pak Line Industries presents the Bipolar Artery Sealer 26cm (Blue Insulated), an extended-reach electrosurgical vessel sealing instrument engineered for controlled high-frequency coagulation, vascular occlusion, soft-tissue grasping, and targeted surgical hemostasis. Designed specifically for deep anatomical access during complex open surgical interventions, its elongated 26 cm frame provides surgeons with balanced mechanical leverage and unobstructed line of sight when operating deep within the pelvic, retroperitoneal, and abdominal cavities.

Manufactured in our ISO 13485:2016 certified facility in Sialkot, this instrument is hot-drop forged from premium medical-grade AISI 420 Surgical Stainless Steel and vacuum heat-treated to HRC 50–54 to guarantee structural stiffness and consistent jaw alignment under continuous load. Encased in a seamless, high-dielectric sky blue polymer insulation coating, the forceps shield adjacent non-target tissue against stray high-frequency RF leakage and capacitive coupling. Featuring anatomically curved working beaks, an integrated locking ratchet catch, and standard universal bipolar terminal pins, this sealer limits thermal energy strictly between the active tips to minimize collateral thermal spread while withstanding repeated steam autoclave cycles.

Key Features & Performance Advantages

• Extended 26 cm Working Length: Long-shaft design enables secure access and optimal mechanical leverage in deep operative cavities without compromising tactile responsiveness.

• Curved Anatomical Working Jaws: Curved beaks enhance operative visibility, assist with natural blunt dissection, and facilitate precise alignment around deep vascular pedicles.

• Localized Bipolar Energy Delivery: Confines high-frequency current strictly between the active jaw tips, limiting lateral thermal damage to adjacent critical anatomy.

• Precision Jaw Closure & Grasping: Engineered for uniform compressive force across vascular structures, ensuring reliable collagen fusion and permanent vessel sealing.

• Integrated Mechanical Locking Ratchet: Multi-step catch maintains constant, controlled grasping pressure across blood vessels during electrosurgical energy activation.

• High-Dielectric Sky Blue Insulation: Continuous, heat-resistant polymer coating extends down to the functional tips to protect surrounding tissue and ensure clear visual contrast in the wound bed.

• Ergonomic Finger-Ring Handles: Classic ring-handled design delivers balanced grip dynamics, intuitive surgical control, and reduced hand fatigue during lengthy procedures.

• Universal 2-Pin Bipolar Terminals: Standard bottom connector pins provide plug-and-play compatibility with standard bipolar electrosurgical leads and major generator platforms (ESUs).

• OEM & Global Contract Supply: Available for OEM manufacturing, private labeling, custom laser marking, and volume wholesale distribution for international medical device brands.

Common Surgical Applications

• Deep Abdominal & Colorectal Procedures

• Gynecological & Pelvic Oncology Surgery

• Urological & Retroperitoneal Interventions

• ENT (Head & Neck) Open Interventions

• General Open Soft-Tissue Coagulation & Vascular Hemostasis

Technical Specifications (B2B Quick-Specs)
